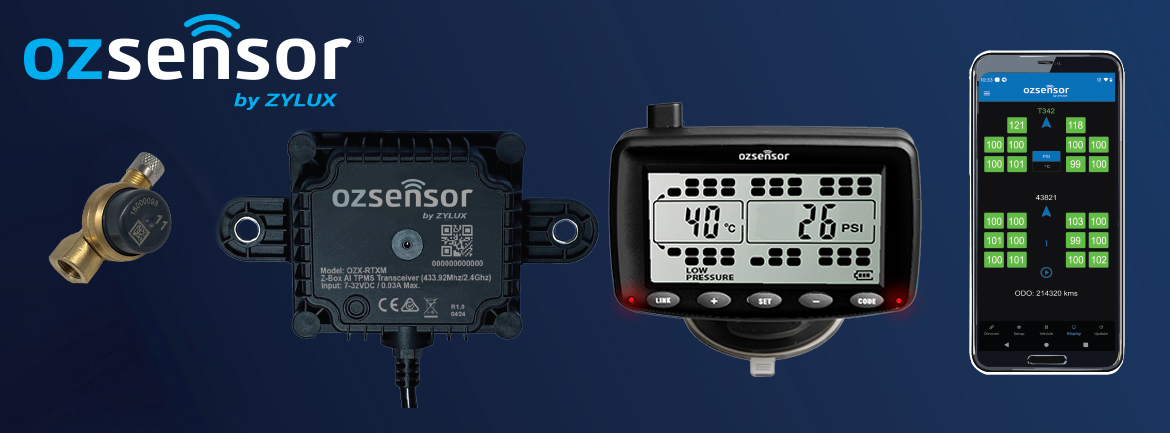

Oz Sensor 'X' - Heavy Duty External TPMS System
Welcome to the future of fleet management with the Oz Sensor 'X' by Zylux. Our state-of-the-art Tyre Pressure & Temperature Monitoring System (TPMS) is designed for trucks, buses, commercial fleets, and more. Prioritising your safety and operational efficiency, our TPMS helps you prevent dangerous blowouts, enhance braking distance, and improve vehicle handling. Not only does this mean safer trips, but it also leads to substantial cost savings, reduced downtime, improved fuel efficiency, and a lower carbon footprint.
Low Pressure
High Pressure
High Temperature
Low Battery Alerts
3rd Party Sensors*
Our innovative solutions ensure optimal tyre pressure and temperature, enhancing safety and performance on the road. Designed to support up to 158 wheels, our system is ideal for managing large fleets with ease.
Why Choose OzSensor ‘X’?
Seamless Integration: Our special flow-through design sensors allow for quick installation and inflation without the need
for costly tyre dismounting. Save time and reduce downtime.
Real-Time Monitoring: Keep a proactive approach to tyre management with real-time monitoring of both tyre pressure and
temperature. Prevent dangerous blowouts and stay ahead of regular maintenance by detecting leaks early.
Efficient Fleet Management: Easily hook up any truck with any trailer (up to 6) equipped with the Oz Sensor ‘X’ system.
Automatic pairing and real-time updates streamline your operations, making drop-and-hook processes more efficient
- Auto Learn Technology: Automatically learn new sensors or manually program via QR Code, NFC or manual ID input.
- External Sensors: Screw-on design, including Standard, Flow Through, and Extension Flow Through.
- Long Battery Life: Over 5 years per sensor.
- Real-time Alerts: Fully customisable Low Pressure, High Pressure, High Temperature, Low Battery Alerts and more.
- Versatile Monitoring: Pressure (0-180 PSI) and temperature (0-125°C) in multiple units.
- Extended Range: 2.4 GHz mesh network for long-range monitoring.
- 12/24V Intelligent Z-BOX AI Transceiver: IP69 rated, OE automotive grade for harsh Aussie conditions.
- Configurable: Monitor 2 to 158 wheels and up to 6 trailers. Configurable through smartphone or tablet.
- Auto Trailer Detection: Efficient trailer connections with auto detection, swapping and ordering.
- Telematics Integration: Supports multiple protocols. RS232, 2.4Ghz BLE, CAN, J1939 and more.
- 3rd Party Devices: Ability to integrate with and receive data from compatible 3rd party sensors. I.e. Hub Odometers, Wheel Loss, Hub Temperature sensors etc..
- Fully customisable: Suitable for trucks, trailers, road trains, buses, RVs, and more.
- Future Proof Technology: Fully updatable firmware capabilities.
- Warranty: 2 Years.
How it works?
Sensors:Tyre pressure and temperature readings are transmitted to the Intelligent Z-BOX AI Transceiver, along with data from any compatible third-party sensors (e.g., wheel loss, hub temperature, hub odometer).
Z-BOX AI Transceiver: One of these is installed underneath every bus, truck, trailer, dolly etc. This processes and
verifies the data before transmitting it to various endpoints, including in-cab monitors, smartphones, telematics cloud
devices, or other Z-BOX Transceivers.
Display: View real-time data and alerts through an in-cab monitor, smartphone, tablet or telematics web platform.
Smartphone / Tablet

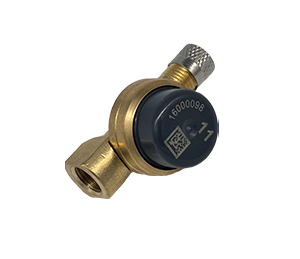

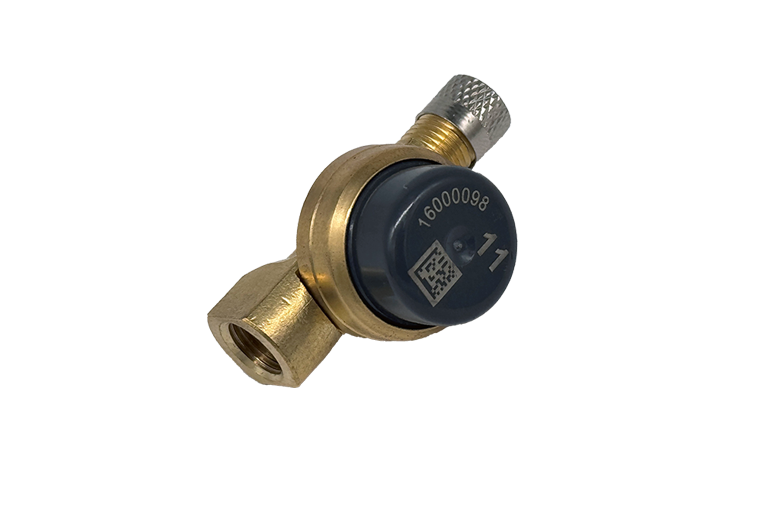

OZX-FTXX : External Flow Through Sensor Design

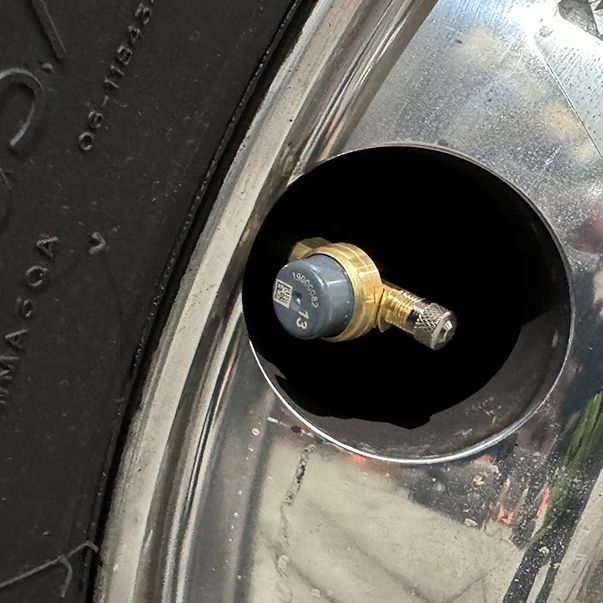

No need to remove tyres.
With auto-learn sensor technology and a flow-through sensor design, installation is a breeze. No need to remove any tyres, simply screw the sensors on. It transmits both pressure and temperature readings, with a remarkable capacity of up to 180 PSI and 125 Deg C. The battery life exceeds 5 years. The tyre temperature sensing can also help pick up any hub related temperature issues.
Real-Time Pressure
Real-Time Temperature
Custom Alerts

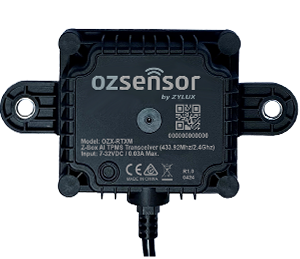

Intelligent Z-BOX AI Transceiver

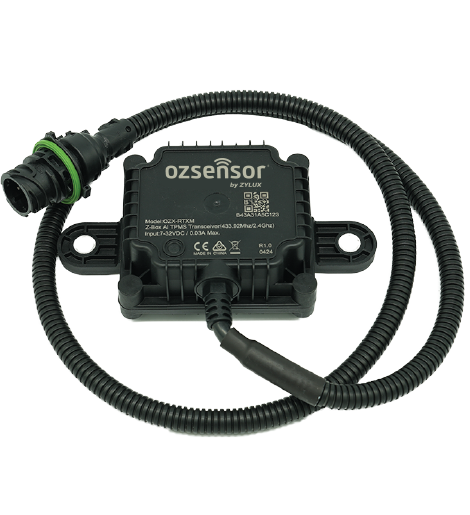

OZX-RTXM : Dual Channel TPMS Transceiver
Our intelligent transceiver which is mounted to each Bus, Truck and Trailer can integrate with any existing telematics system, transmitting the data directly to an in-cab monitor or any smartphone or tablet. Additionally, it can provide drop and hook automatic trailer detection and connection functionality, ensuring comprehensive coverage and tracking for all your assets.
12V/24V Compatible
IP69 Rating
- Supports Tyre Pressure & Temperature Sensors
- Supports Compatible 3rd Party Sensors
- Multiple Communication Protocols for Telematics Integration
- Fully Programmable and Updatable via Smartphone or Tablet
ᛡ
Optional In Cab Monitor

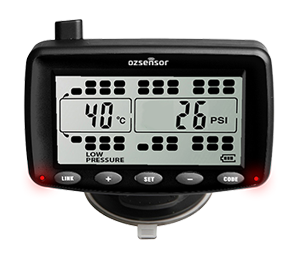

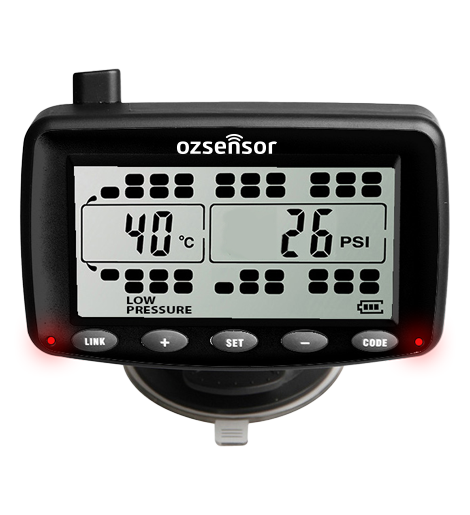

OZX-TMON: OzSensor Display
The OzSensor In-Cab TPMS display keeps you informed with real-time alerts for your tyres. If there's a low pressure, it will emit an audible warning and the display will flash amber LEDs with “LOW PRESSURE” and sensor position. For extreme low pressure, an audible warning with red LEDs flashing alongside “LOW PRESSURE.” If a tyre exceeds safe temperature limits, the system will alert you with both an audible signal and red LEDs, displaying “HIGH TEMP.” Lastly, high pressure conditions trigger a similar audible and visual warning, but with “HIGH PRESSURE” on the display.
12V/24V Compatible
Dash or Windscreen Mount
- Low Pressure Alert - Visual / Audio
- Exteme Low Pressure Alert - Visual / Audio
- High Pressure Alert - Visual / Audio
- High Temperature Alert - Visual / Audio
- Fully Programmable and Updatable via Smartphone or Tablet
ᛡ
Service & Installation:
The effectiveness of the Tyre Pressure Monitoring system is directly dependent on the quality of the installation and service. To ensure convenient installation and maintenance, Zylux has created a tool and service kit specifically for the Oz-Sensor 'X' system. This comprehensive kit includes tools for seamless sensor fitting or replacement, as well as O-ring replacement if necessary.
What's included?
P/N: OZX-TK - OzSensor TPMS Tool Kit.
- 1. Torque driver tool 3Nm
- 2. Flow through sensor fitting socket
- 3. 10mm spanner (for extension clamp installation)
- 4. Adapter for Torque driver tool
- 5. O-Ring fitting tool for flow through sensor
- 6. Flexy / extension sensor fitting tool
- 7. 300mm extension for Torque driver tool
- 8. Replacement O-Ring’s for flow through sensor
- 9. Replacement O-Ring’s for flexy extension sensor
Get in Touch
For more details and to explore a custom solution tailored to your business and safety needs, please contact us. Our team is ready to assist you in finding the perfect fit for your fleet management requirements. Reach out today to discover how we can help optimise your operations and enhance safety with our advanced technology.
